Smart BMS 10S->17S 20A

€42.95

Tax included.

Shipping between 1-2 business days

In stock, ready to ship
Backordered, shipping soon

We strive to dispatch every order as quickly as possible. Typically, parts are shipped on the same workday they are ordered.

DESCRIPTION;

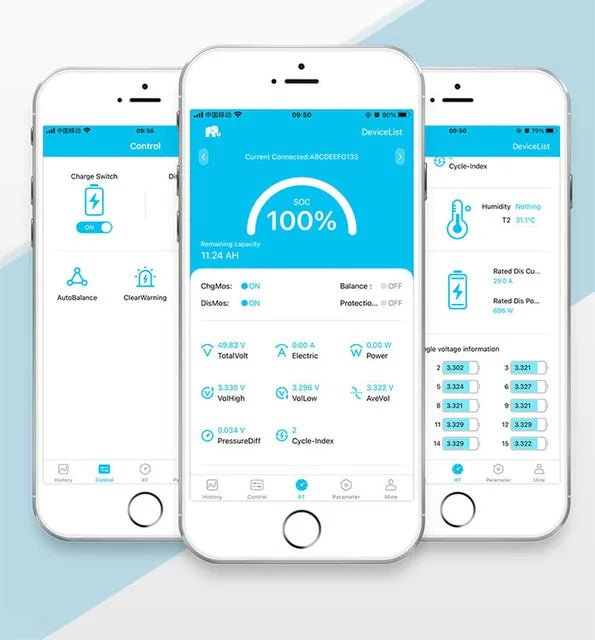

Smart BMS with bluetooth app for android and IOS.

For batteries with a cell count between 10s and 17s.
Charge and discharge current; 20A
Balance current; max 90mA

Dimension: : 102*65*12mm

Includes:
* Smart BMS
* Built-in Bluetooth
* Balance cables
* 3x temperature sensor

IOS: XiaoxiangBMS
Android: download here

SPECS:
Overcharge detection protection voltage: 4.25+-0.03V
Overcharge protection delay time: 1000ms
Overcharge protection recovery voltage: 4.15+-0.025V

Overdischarge detection voltage: 2.7+-0.1V
Overdischarge protection delay time: 1000ms
Overdischarge protection recovery voltage: 2.9+-0.1V

Balance start voltage: 4.0 V
