DESCRIPTION;
Please note: Don't overtighten the enclosure bolts to avoid damaging the top layer of the deck and the enclosure!
Deck Versions:

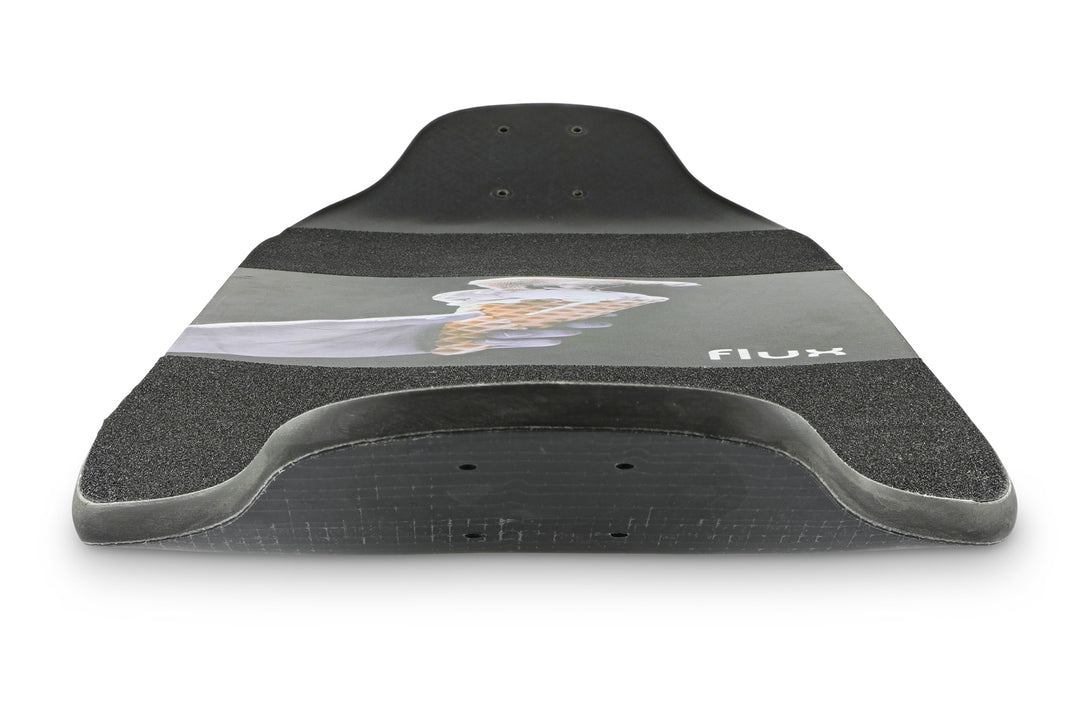

* Logo + graphic: same deck as the flux deck with logo and graphic
* Second choice: decks with some small aesthetic imperfections, examples here.
Enclosure Versions:
* Only Mounting Holes: Enclosure with holes for the mounting bolts
* Mounting + motor + led + chargeport holes: Mounting, motorwire, led, chargeport holes

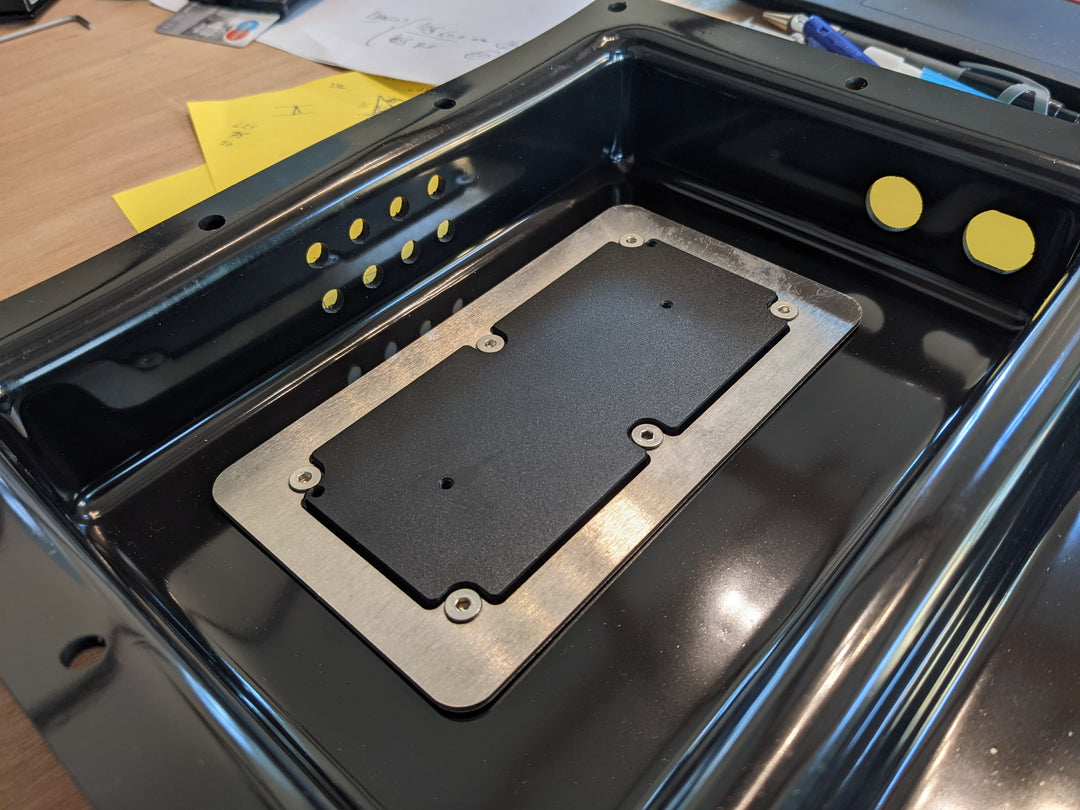

* All holes + heatsink cutout + heatsink & lasercut piece: All the above holes + cutout for the heatsink, comes with the heatsink (compatible with FocBox Unity and StormCore) and the lasercut clamping piece (see last pictures)
For the DIY enthousiasts we offer the Flux AT deck + enclosure combo. The deck comes with pre-installed inserts, the enclosure comes with pre-drilled holes!
Specs:

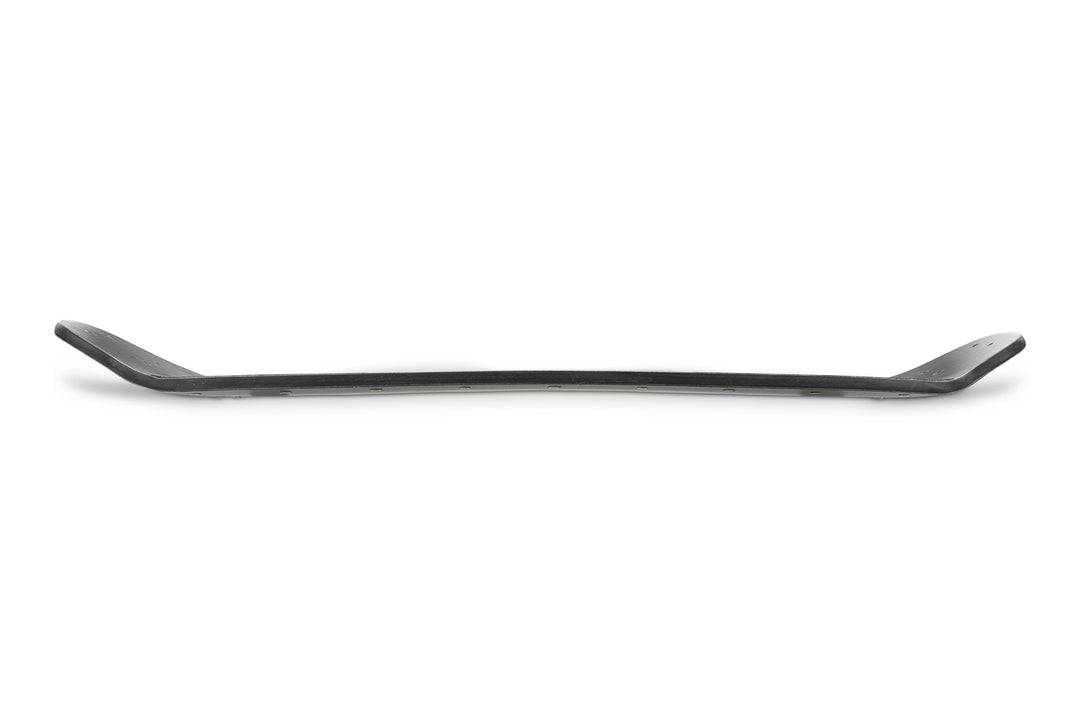

Custom deck 100x29cm : poplar, glass - and carbonfiber

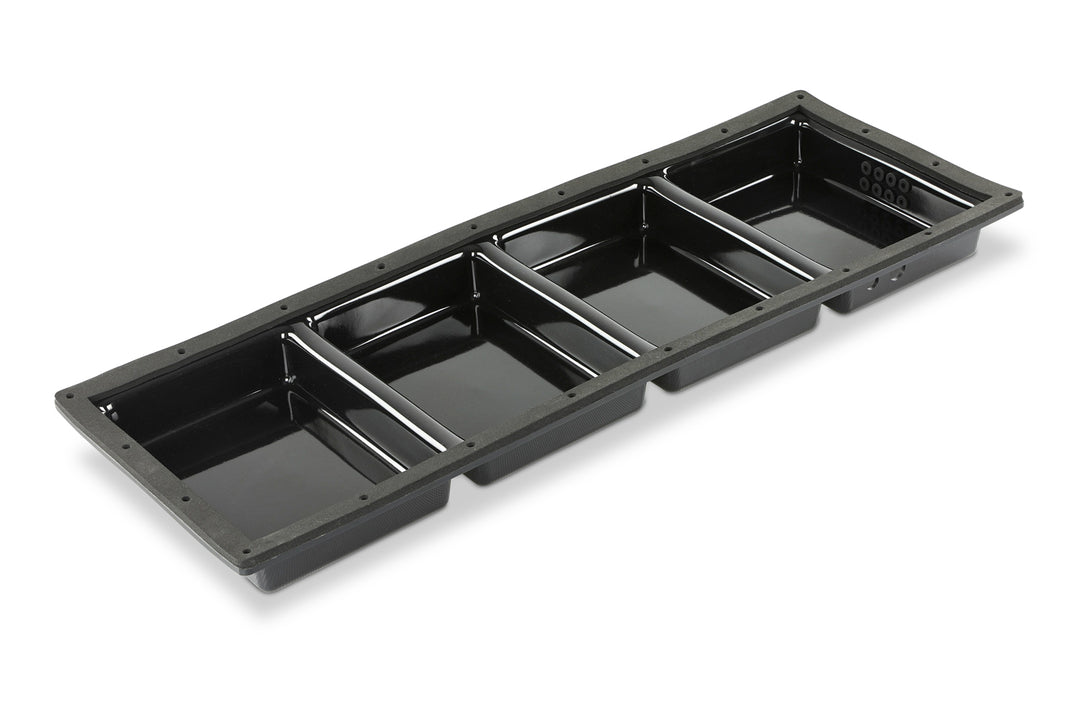

5mm thick ABS enclosure with diamond pattern, fits for 12s10p 18650 cells, 20x14x4cm per compartiment

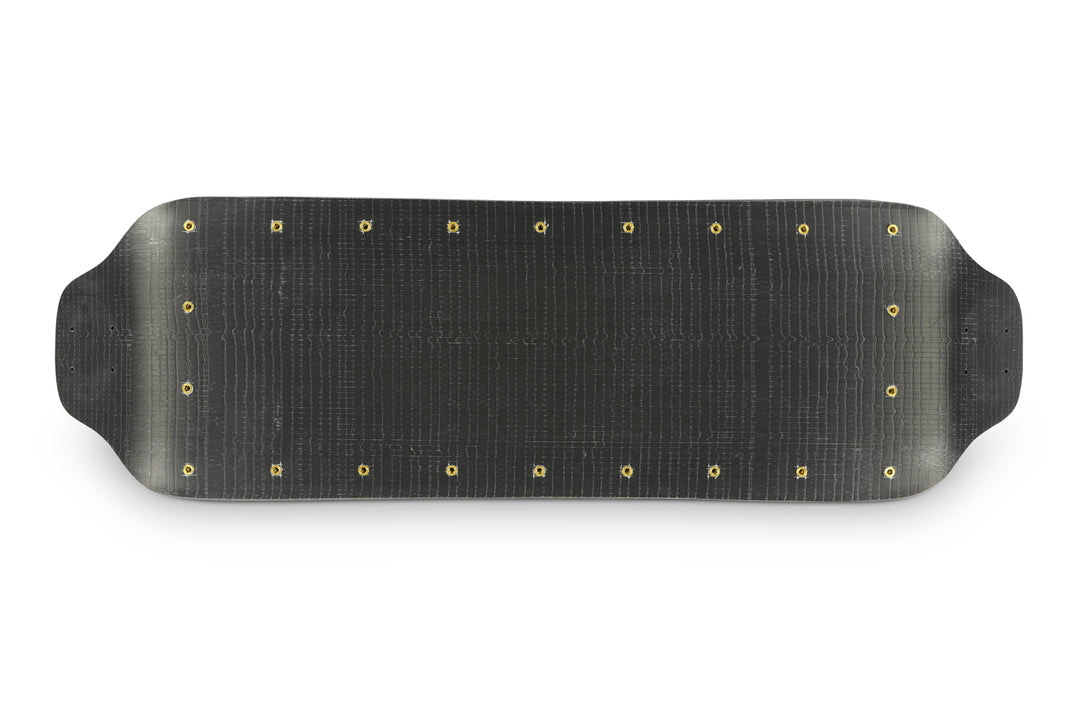

Threaded M5 inserts
6mm rubber foam sealing strip
Includes:
Deck
Enclosure
Rubber foam sealing
Stainless steel mounting hardware
Rubbers for motor wires
NOT included: griptape
Please note:

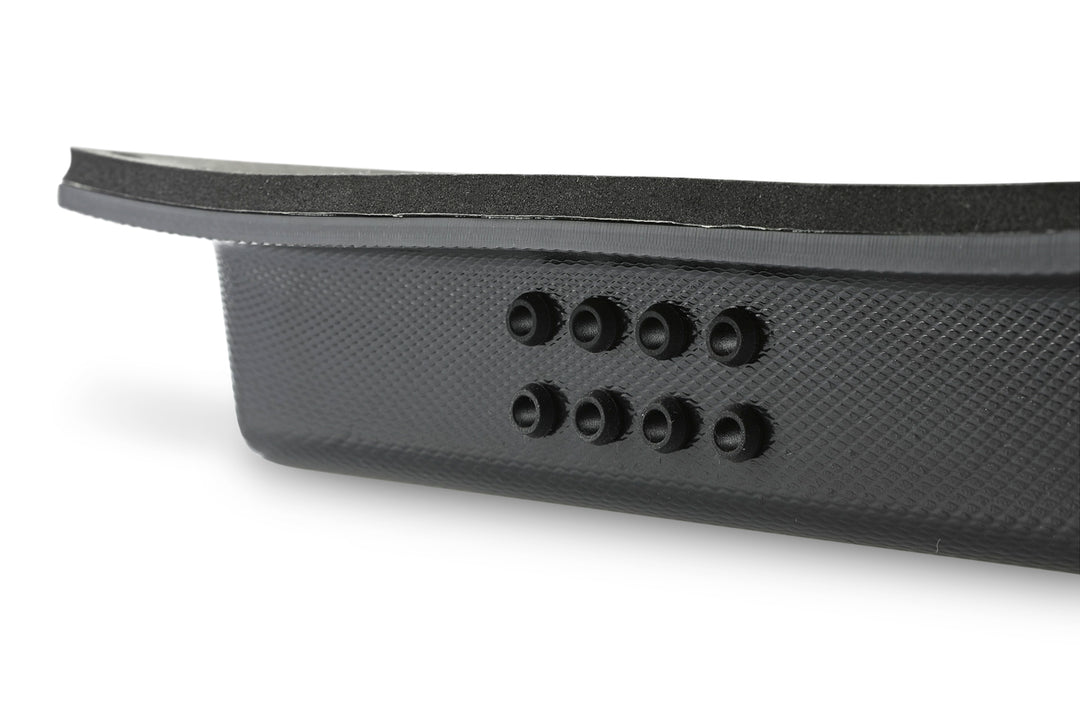

8 holes are drilled for the motorwires, rubber grommets fits for 12awg wire

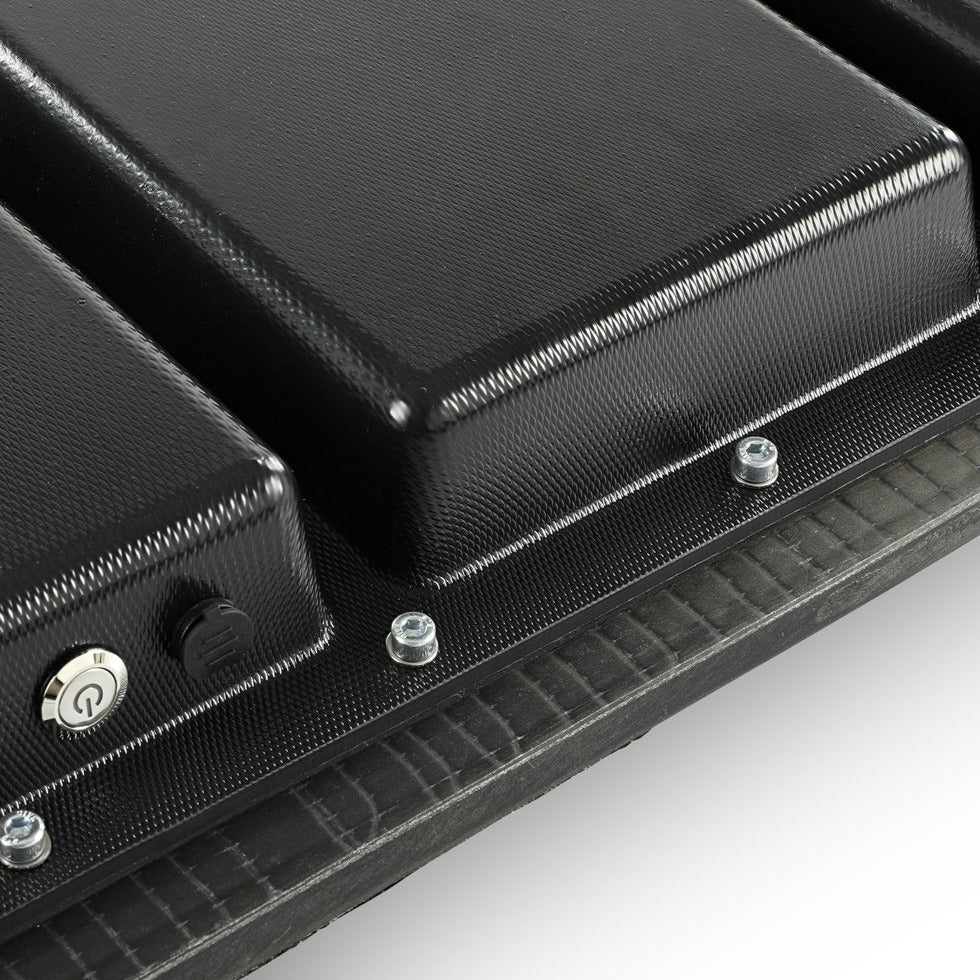

18mm drilled hole for CN linko 10A charge port
16mm drilled hole for led switch
